  Szerintem megvan, mit vennék a babyhawk helyett. .

  BNF. 66 gramm, 95mm. És naggyon cuki. .





  Specification:
  Brand name: Eachine

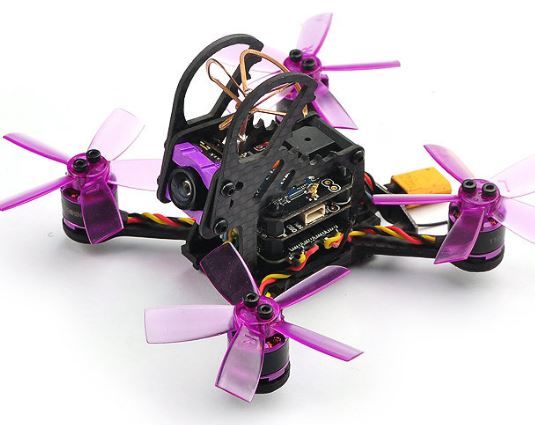

  Item Name: Lizard95 95mm Micro FPV RACING DRONES BNF
  Size:115mm*115mm*60mm

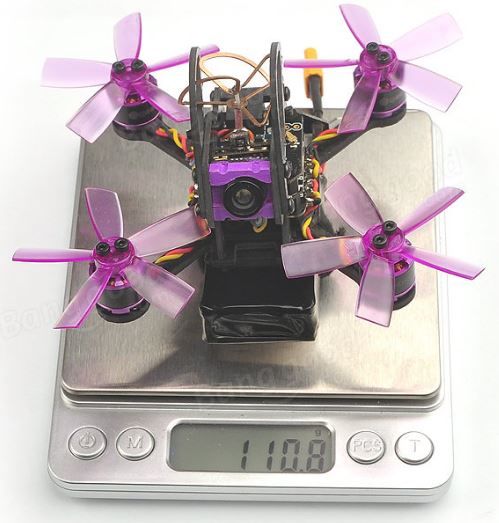

  Weight: 66( battery not include)
  Flight controller: Betaflight F3 Flight controller built-in OSD
  Motor: Eachine 1104 KV6000 brushless motor
  Propeller: 50mm 5-blades propeller
  Camera: 600TVL HD CMOS 1/4inch
  VTX: 5.8g 25MW/100MW Switchable 48CH NTSC/PAL Video transmitter
  Battery: 11.1V 550mah 40C lipo battery
  OSD: Betaflight OSD
  Firmware of Flight controller etaflight 3.1
  Flight time : 4minutes
  Rear LED Ready( LED_Strip function)
  Buzzer Ready

  Receiver Option:
  -Compatible Frsky D8 modee SBUS receiver (RSSI ready)
  -Compatible Flysky 8ch AFHDS2A receiver Ibus output with Failsafe
  -Compatible Specktrum DSM2/DSMX receiver

  Flight controller Specification:
  -Size:27mm*27mm*5mm
  -Mount hole: 20mm*20mm
  -Processor: STM32 F303 MCU
  -Sensor: SPI Sensor MPU6000
  -Built-in Betaflight OSD ( Batt voltage, RSSI , Artificial Horizon , Fly mode , -Flytime, Craft name etz.)
  -Firmware version: Betaflight 3.1 Dshot600 ready
  -Target: OmnibusF3
  -Work voltage: 2S-3S lipo battery

  ESC specification:
  -Size:27mm*27mm*5mm
  -Mount hole: 20mm*20mm
  -Firmware version: BLHELI_S 16.5
  - BB2, 48MHZ Chip
  -Lipo Battery: 2S-3S
  -Con. Current: 10A
  -Peak Current: 15A (10S)
  -BEC: 5V @0.1A
  -Programming: YES
  -Betaflight pass-trough ready
  -Dshot600 ready(Default)
  -Support oneshot42 oneshot125 Multishot Dshot
  -Damped light on

  Features:
  -Extremely light and more powerful 3S power makes the Lizard 95 like a beast
  -STM32 F303MCU + BLHELI_S ESC make your Operating feel more stability and silky
  - Adjustable Angle of Camera
  - Adjustable VTX Power 25mw/100mw
  - Jaw-dropping flight performance
  - Betaflight support
  -Acro mode / Air mode /Angle mode support
  -Built-in OSD(Using F3 MCU controls OSD over SPI bus in DMA mode)
  -OSD Configuration has been include in BETAFLIGHT GUI
  -Radio Stick to control PID Tunes
  -BLEHELI_S pass-through ready
  - Telemetry RSSI Output ready(Frsky Version)

  Package include:
  1 x Eachine Lizard95 Frame kit
  1 x Betaflight F3 6DOF flight controller build-in OSD
  1 x Compatible Frsky/DSMX/Flysky AFHDS2A Receiver(optional)
  4 x Eachine 1104 6000KV brushless motor
  1 x Minicube 10A BLHELI_S 16.5 2s-3S 4 in 1 ESC Dshot600
  4 x 50mm 5-blades propeller CW
  4 x 50mm 5-blades propeller CCW
  1 x 600TVL HD CMOS 1/4 inch camera
  1 x 5.8g 25MW/100MW Adjustable 48CH NTSC/PAL VTX
  1 x 11.1V 550mah 40C lipo battery XT30 plug
  1 x WS2812 LED Board
  1 x Buzzer(Integrated in Receiver)
